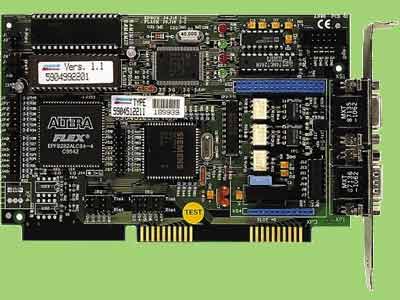

PC-188

BITBUS card for ISA bus
(standard ISA and PC104 versions)

PC-188 is an expansion card for ISA or PC104 buses which let your PC to be interfaced with a Bitbus network.

It´s compatible with older PC-44 card (which is 100% clone of original Intel iPCX344A), outperforming it with its high-end HDLC controller and its capability of exchanging 255 byte long messages.

Free BAPI libraries for DOS, DOS/4GW, Win16, Win9x, WinNT and OS/2.

Dimensions: 210×107 mm

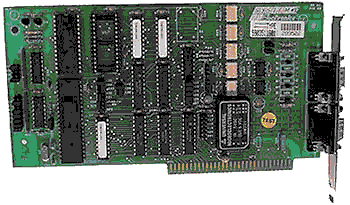

PC-44

Bitbus card for ISA bus
(based upon 8044 microcontroller)

PC-44 is an expansion card for ISA bus which let your PC to be interfaced with a Bitbus network..
It’s 100% clone of original Intel iPCX344A, being based upon the same 8044 Bitbus microcontroller.

Bitbus interface fully supports both synchronous mode (0.5 to 2.4 Mbps) and self-clocked mode (375 and 62.5 Kbps, 500VDC opto-isolated from internal logic).

Free BAPI libraries for DOS, DOS/4GW, WIN16, WIN-9x, WIN-NT and OS/2.

Dimensions: 210×107 mm

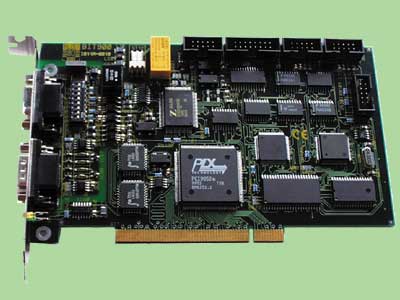

ISA, PC/104 and PCI

BIT900 series of modern BITBUS master boards

ELZET80´s   IPC-BIT900  high performance BITBUS master boards feature:

• 16-Bit microcontroller with mCAT real-time kernel
• Real 512x9 FIFOs for both receive and transmit
• High-Drive 75LBC176 BITBUS drivers
• Optoisolation
• Reliable line protection network

A modern WDM driver is available for Windows98 and Windows2000, with a BEUG recommended API (BAPI) for easy access by all programs that can interact with a DLL.
